High adaptability
to any width of shaft
The telescoping shaft beams allow easy adaptation to any dimension of structure.
Quick to reposition
in just one crane cycle
Reduced labour and crane times, as
- the entire unit can be repositioned quickly and safely in one piece
- the Framax stripping corner I makes it easy to set up and strike the formwork, with no need for a crane
Easy to mount
as required
Handy, practical suspension-mounting on the structure, using
- gravity pawl with no expendable anchoring components
- main beam head
System
Sample building core design
(1) Climbing formwork MF240 – to support the wall formwork, especially on the outside of the building core. The fully enclosed platform system offers plenty of space for fast, safe working.

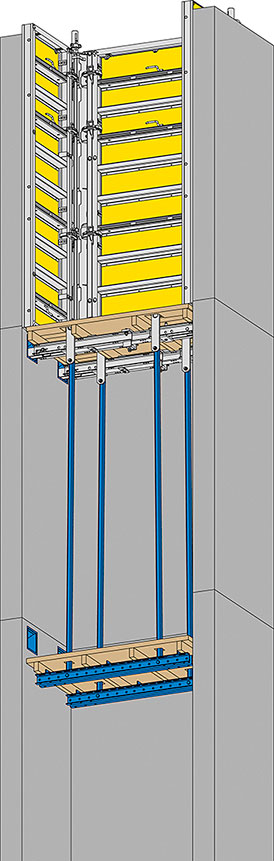

(2) Shaft platform – to support the wall formwork of staircases and lift shafts. Repositioning platform and formwork requires only that the wall formwork is slightly detached from the concrete.
The perfect combination for shafts: Shaft platform plus Framax stripping corner I. The formwork is closed and opened without any crane assistance, simply by turning a spindle with a hammer or reinforcement rod or with the easy-to-handle ratchet.
