Product description
Doka floor props Eurex top are extendable floor props made of steel, compliant with ANSI and CSA. They are designed for use as vertical props for temporary structures.
|

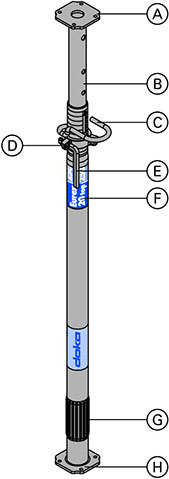

A Head-plate |
|
B Inner tube |
|
C Fastening clamp |
|
D Adjusting nut |
|
E Toggle lever |
|
F Type label |
|
G Outer tube with impact protector |
|
H Footplate |
|
|
You will find information on correct usage of the Doka floor prop Eurex 20 top 700 in the User Information booklet of the same name. |
The main features:
▪ Floor prop compliant with ANSI and CSA.
▪ high load-bearing capacity
- see the section headed 'Permissible load-bearing capacities'
▪ Numbered pegging holes for easier height adjustment
▪ Quick connection:
Head adapters of various types can be secured against pull with the spring-locked connecting pin
▪ Drop-out latch:
For safety reasons, Doka props have latches to prevent the inner tube sliding out of the outer tube.
▪ Special thread geometry makes the props easier to release even under high load
▪ When the prop is fully retracted, a 4” (10 cm) gap remains so that the operator's hands are not trapped.
▪ elbowed fastening clamps, reducing the risk of injury and making the props easier to operate
▪ galvanized and durable
▪ impact protector:
optimum protection against damage when adjusting/setting up the prop using the Plastic mallet 4kg.
The following props do not have an impact protector:
- Eurex 20 top 150
- Eurex 30 top 550
Practical examples
|

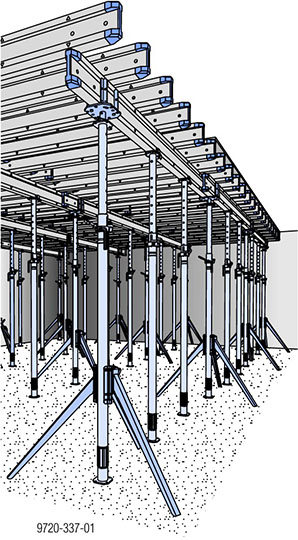

Doka Floor Systems |

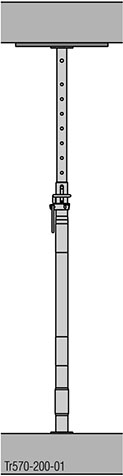

Temporary reshore |
|---|---|
|
|
|
e.g. ▪ Superdek ▪ Dokaflex ▪ Dokamatic table ▪ Panel floor formwork Dokadek Follow the directions in the relevant User Information booklet! |
|
.
